Pre-Folder Auto Folder Gluer
  • Pre-Folder Auto Folder GluerPre-Folder Auto Folder Gluer

Pre-Folder Auto Folder Gluer


The XIESHUN high quality Pre-Folder Auto Folder Gluer has a high level of automation and can automatically complete the entire process of cardboard feeding, folding, gluing and output. The equipment is usually equipped with a touch screen operation interface to facilitate users to enter order information and adjust equipment parameters.

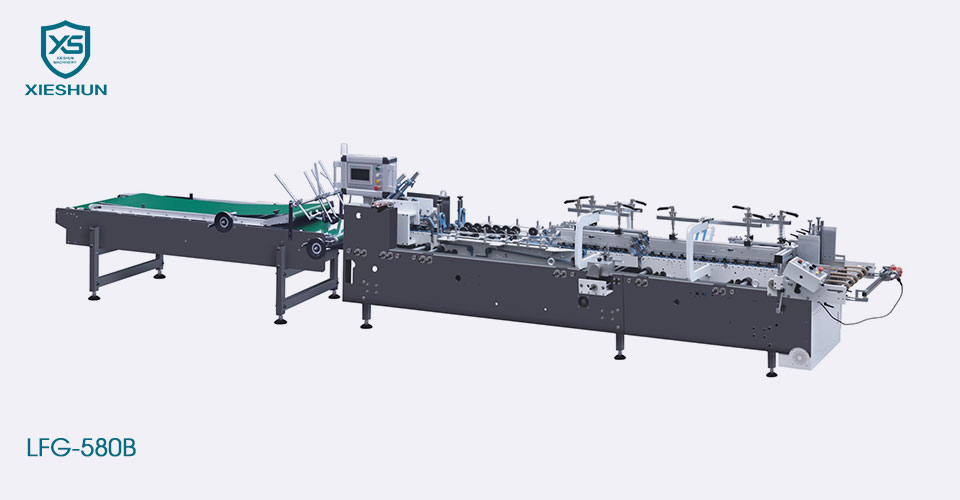

LFG-580B Pre-Folder Auto Folder Gluer include feeder, pre-folder and foling, Pre-Folder Auto Folder Gluer is widely used for folding and gluing paper boxes in the fields of pharmacy, cigarette, wine, cosmetic and other light industry products. This machine is an essential equipment in packaging industry to reduce labor, raise productivity and box quality.

Model LFG-580
Paper Material Cardboard 200-800g
Max. Liner speed Max. 250 meter/minute
Feeding way Automatically and continuously feeding
Way of folding Fold 1 and fold 3 are 180°,
Fold 2 and fold 4 are 90°and 180°
Bottom folded and glued
Glue Material Water-base cold glue
Electric power 6.5kw 380v
Weight 3.0T
Over dimension 8x1.2x1.4m


Model LFG-580
A 75-580mm
B 60-580mm
E 35-320mm

Feature introduction

Independent carriers, 5 pcs very easy to replace belts, long service life of belts.
Special vibrating motor is used for smoother paper feeding.
Independent Feeder motor for adjust feeding speed easily.
Double-board structure with a set of pre-folding knife.
Pre-fold angle is 180°and 90°, especially suitable for small but high cartons, more satisfactory while rapid prototyping
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Two carriers design, convenient pressure adjustment, stable box sticking.
The pressure of top carriers can be adjusted according to box thickness
With counting device to count the finished boxes to match with boxes
regulating, easy to count and pack.
Long-distance upper and down belts design, prolongs the running time for finished boxes, enhances the box gluing quality.
Pneumatic pressure mechanism, more convenient adjustment.
The running speed of belts in this section can be adjusted as demand.
