4/6 Corner Automatic Folder Gluer
  • 4/6 Corner Automatic Folder Gluer4/6 Corner Automatic Folder Gluer

4/6 Corner Automatic Folder Gluer

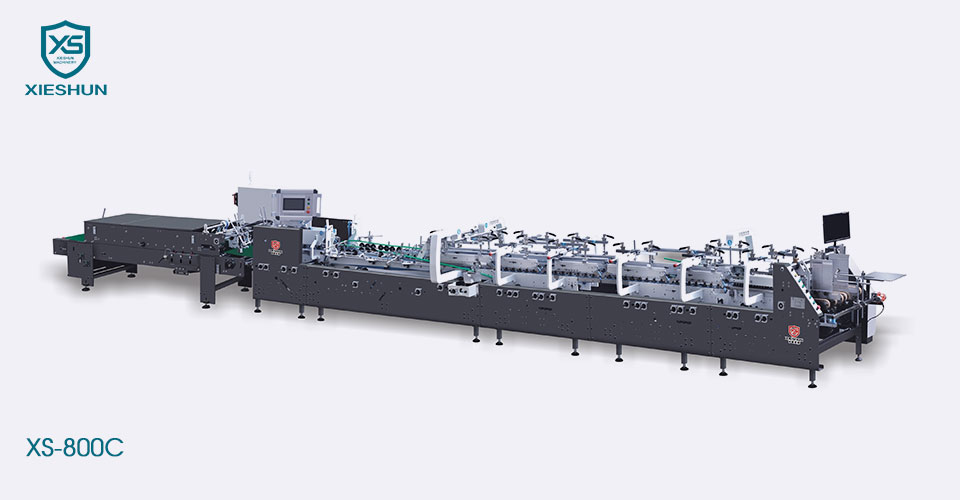

Model:XS-800C

XIESHUN supplier's 4/6 Corner Automatic Folder Gluers use an integrated color touchscreen human-machine interface system, enabling the belt speeds on either side of the folder to be adjusted, as well as the automatic regulation of the main machine's transmission speed and the conveyor belt of the press machine. Additionally, it features an automated synchronization tracking parameter setting system.

XIESHUN XS-800C 4/6 Corner Automatic Folder Gluer, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standardelectronic components,feeder with independent motor , stable and easy to control and operate.


Model XS-800C
Suitable material 200-600g/㎡cardboard and N/F&E flute corrugated board
Speed range 0-300m/min
Inching speed 30m/min
Max blank width 850mm
Dimension(L) 12500mm
Dimension(W*H) 1400mm×1900mm
Mechanical weight 7T
Mechanical power 16kw
Compressed air 6bar
Air compressor capacity 10㎡/h
Air tank capacity 60L


Model
XS-800
A 90-800mm
B 60-700mm
E 25-390mm
A 90- 800mm
B 120- 600mm
E 70-390mm
A 160- 800mm
B 160-800mm
H 25-120mm
A 270-700mm
B 160- 450mm
H 25-120mm
A 270-700mm
B 160- 800mm
E 25-120mm


PARTIAL PICTURES OF MACHINE

Feeder


1. Easy to lift the left and right side baffles.

2. The paper feeding belt of the paper feeding section can be independently adjusted to effectively ensure smooth paper feeding.

3. Variable frequency motor, separate speed regulation effectively ensure uniform paper spacing.


Alignment


1. The cardboard sent to the paper section is corrected by the correction department to make the cardboard go straight.

2. The upper pressure drive of the correction part can be adjusted up and down to adapt to different paperboard thicknesses and provide stability assurance.


Pre-folding Section


1. Segmented left and right upper belt plate can be based on the product Demand expansion adjustment, fast and efficient.

2. Can effectively complete the pre-folding of the 1 and 3 fold lines of the carton,

Optimize the effect of final molding.


Lock Bottom


1. 3 Plate conveyor belt structure, segmented upper belt plate function, It can effectively overcome the problems in the production of special-shaped box products.

2. The middle and upper belt plate is detachable, as required by the product


4&6-corner Device

◆Intelligent servo motor drive controlled electronic folding hooks mounted on two independently controlled servo axes precisely guide the folding of al1 the boxes.
◆Can produce 4 & 6 corner box and other different types.
◆Human-machine interface intelligent setting, easy to operate, intuitive and easy to understand.


Lower Gluing Unit

◆Mechanical glue wheel, high speed no glue leak, convenient for cleaning and maint enance
◆Glue wheel width 3mm,can also be changed according to the product.


Folding Section

◆3 Plate drive belt plate structure (optional), the middle plate can be disassembled independently, convenient for small box forming.
◆The speed of the left and right outer folding belt (optional) can be adjusted independently to ensure the forming accuracy.

Transfer Section


1. Output faster than the folding speed, open the box spacing.

2. The upper and lower belt expansion adjustment is simple and easy to operate.

3. Equipped with high-speed electronic kick counter.


Control Panel

◆Touch screen, easy to operate, intui tive.
◆Multiple languages available.
◆Memory function and remote control (opt ional).

Conveyor

◆Integrated box stream regulator for precise stream intervals and faster running
◆In manual mode, the belt moves at a constant sp eed and is not affected by the main motor speed.
◆Pneumatic pressure control is more accurate, to ensure bonding effect.
