Crash Lock Automatic Folder Gluer
  • Crash Lock Automatic Folder GluerCrash Lock Automatic Folder Gluer

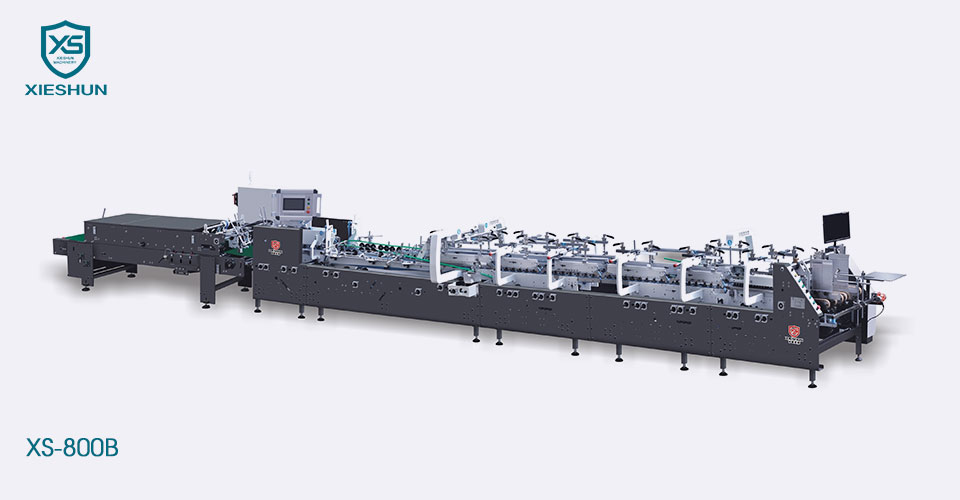

Crash Lock Automatic Folder Gluer

Model:XS-800B

The Crash Lock Automatic Folder Gluer from China XIESHUN supplier is designed for single-person operation per section of the board, facilitating swift and efficient processing.

XS-800B Crash Lock Automatic Folder Gluer, drive by synchronous belt,the feeder, folding, Transfer are all equipped with independent motors, frequency conversion speed regulation and linkage , stable and easy to control and operate. Run Straight line box and Crash lock box.


Model XS-800B
Suitable material 200-600g/㎡cardboard and N/F&E flute corrugated board
Speed range 0-300m/min
Inching speed 30m/min
Max blank width 850mm
Dimension(L) 11000mm
Dimension(W*H) 1400mm×1600mm
Mechanical weight 6T
Mechanical power 12kw
Compressed air 6bar
Air compressor capacity 10㎡/h
Air tank capacity 60L


Model
XS-800
A 90-800mm
B 60-700mm
E 25-390mm
A 90- 800mm
B 120- 600mm
E 70-390mm


PARTIAL PICTURES OF MACHINE

Feeder

◆Set up quickly and rapidly
◆Variable speed independent motor
◆Adjustable on the run
◆Easy repeatability
◆Light maintenance
◆Feeds most types of materials
◆Handles most box styles
◆Feeder Air suction(optional)

Alignment

◆The paperboard sent by feeder shall be corrected by the alignment to ensue go straight.
◆The upper pressure drive can be adjusted up and down to adapt to different paperboard thickness.

Lock Bottom

◆3 groups of conveyor belt structure, segmented upper belt plate function, can effectively overcome the probl ems in the production of special box products.
◆The middle and upper belt plate is removable and can be disassembled and adjusted according to product requirements.

Lower Gluing Unit

◆Mechanical glue wheel, high speed no glue leak, convenient for cleaning and maint enance
◆Glue wheel width 3mm,can also be changed according to the product.


Folding Section

◆3 Plate drive belt plate structure (optional), the middle plate can be disassembled independently, convenient for small box forming.
◆The speed of the left and right outer folding belt (optional) can be adjusted independently to ensure the forming accuracy.

Transfer Section

◆The output part faster than this folding, opens the box spac ing, which is convenient for counting and receiving paper.
◆The upper and lower belt expansion adjustment is simple and easy to operate.
◆Equipped with hi gh-speed electronic kickcounter.

Control Panel

◆Touch screen, easy to operate, intui tive.
◆Multiple languages available.
◆Memory function and remote control (opt ional).

Conveyor

◆Integrated box stream regulator for precise stream intervals and faster running
◆In manual mode, the belt moves at a constant sp eed and is not affected by the main motor speed.
◆Pneumatic pressure control is more accurate, to ensure bonding effect.
