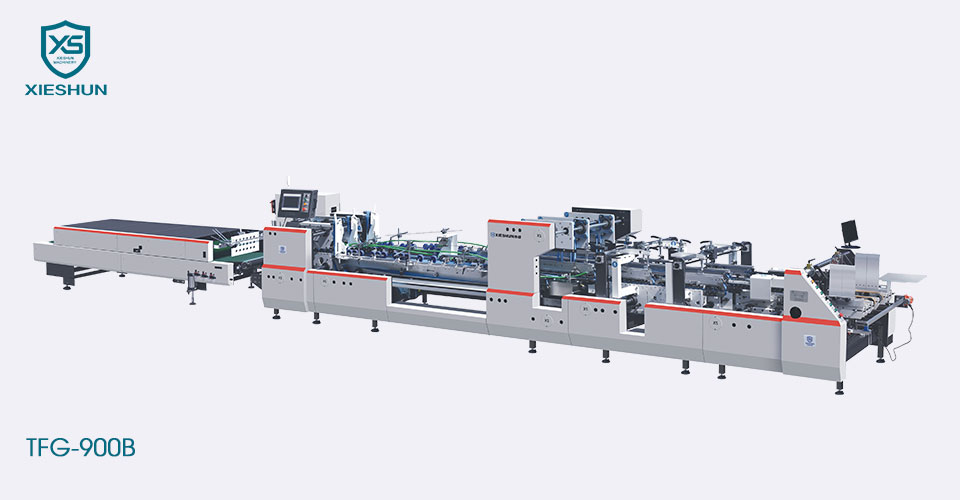

XIESHUN TFG-900B Crash Lock High Speed Folding And Gluing Machine, suitable for straight-line, crash-lock bottom box. You can rest assured to buy High Speed Folding And Gluing Machine from our factory.
TFG-900B Crash Lock High Speed Folding And Gluing Machine with driven upper carriers and Folding inner lifting optional function is your best option for packaging.
Model
TFG-900 B
Suitable material
200-800g/㎡cardboard and N/F&E flute corrugated board
Speed range
0-400m/min
Inching speed
30m/min
Max blank width
900mm
Dimension(L)
13500mm
Dimension(W*H)
1400mm×1600mm
Mechanical weight
8T
Mechanical power
19kw
Compressed air
6bar
Air compressor capacity
10㎡/h
Air tank capacity
60L
Model
TFG-900 B
A
160-900mm
B
100-900mm
E
70-440mm
A
170-850mm
B
170-900mm
E
80-440mm
PARTIAL PICTURES OF MACHINE
Feeder
◆The left and right side baffles are easy to lift.
◆The paper feeding belt of the paper feeding unit can be adjusted independently to ensure smooth paper feeding.
◆Servo motor, independent speed regulation to ensure uniform paper spacing.
◆Paper feeding suction device (optional).
Alignment
◆The cardboard sent out by the paper feeding unit is corrected and guided by the correction unit to make the cardboard run in a straight line.
◆The upper pressure drive of the correction unit can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee.
Lock Bottom
Three groups of conveyor belt structure, segmented upper belt plate function, can effectively overcome the problems in the production of special-shaped box products.
The middle upper belt plate is detachable and can be disassembled and debugged according to product requirements.
Lower Gluing Unit
◆Mechanical left and right lower glue cylinders, with separate design of glue wheel and glue cylinder, high speed without glue throwing, easy to clean and maintain.
◆The glue wheel is 5mm wide and can be replaced according to the product.
Folding Section
◆3-plate transmission belt plate structure.
◆The left and right outer folding belt speeds can be fine-tuned independently to ensure molding accuracy.
◆Self-drive upper carriers,precise folding for corrugated boxes
Transfer Section
◆Independent frequency conversion of separate motors.
◆Easy to adjust the upper and lower belt extensions.
◆Equipped with a high-speed electronic kick counter.
Control Panel
◆Adopt 10-inch large screen, easy and intuitive operation.
◆Multiple languages are available.
◆Memory function and remote control (optional).
Conveyor
◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box.
◆In manual mode, the belt moves at a constant speed and is not affected by the host speed.
◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed.
