Crash Lock High Speed Folder Gluer
  • Crash Lock High Speed Folder GluerCrash Lock High Speed Folder Gluer

Crash Lock High Speed Folder Gluer

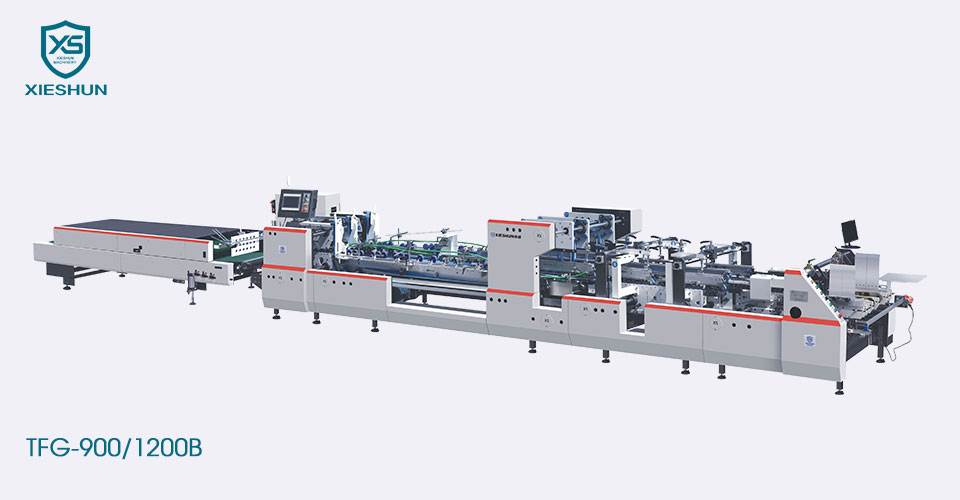

Model:TFG-900/1200B

XIESHUN, a renowned China-based factory, is globally recognized for its unwavering commitment to producing and distributing high-quality Crash Lock High Speed Folder Gluer. With a wide-reaching customer base spanning various regions worldwide, XIESHUN state-of-the-art facilities and cutting-edge technology, make it a leading force in the industry.

Crash Lock High Speed Folder Gluer TFG-900/1200B, suitable for straight-line, crash-lock bottom box .TFG-900/1200B Crash Lock High Speed Folder Gluer with driven upper carriers and Folding inner lifting optional is your best option for packaging.


Model TFG-900 B TFG-1200 B
Suitable material 200-800g/㎡cardboard and N/F&E flute corrugated board
Speed range 0-400m/min
Inching speed 30m/min
Max blank width 900mm 1200mm
Dimension(L) 13500mm 13500mm
Dimension(W*H) 1400mm×1600mm 1850mm×1600mm
Mechanical weight 8T 9T
Mechanical power 19kw 19kw
Compressed air 6bar
Air compressor capacity 10㎡/h
Air tank capacity 60L


Model
TFG-900 B TFG-1200 B
A 160-900mm 170-1200mm
B 100-900mm 100-900mm
E 70-440mm 70-560mm
A 170-850mm 170-1050mm
B 170-900mm 170-900mm
E 80-440mm 80-560mm



PARTIAL PICTURES OF MACHINE

Feeder

◆The left and right side baffles are easy to lift.

◆The paper feeding belt of the paper feeding unit can be adjusted independently to ensure smooth paper feeding.

◆Servo motor, independent speed regulation to ensure uniform paper spacing.

◆Paper feeding suction device (optional).

Alignment

◆The cardboard sent out by the paper feeding unit is corrected and guided by the correction unit to make the cardboard run in a straight line.

◆The upper pressure drive of the correction unit can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee.


Lock Bottom

Three groups of conveyor belt structure, segmented upper belt plate function, can effectively overcome the problems in the production of special-shaped box products.

The middle upper belt plate is detachable and can be disassembled and debugged according to product requirements.

Lower Gluing Unit

◆Mechanical left and right lower glue cylinders, with separate design of glue wheel and glue cylinder, high speed without glue throwing, easy to clean and maintain.

◆The glue wheel is 5mm wide and can be replaced according to the product.

Folding Section

◆3-plate transmission belt plate structure.

◆The left and right outer folding belt speeds can be fine-tuned independently to ensure molding accuracy.

◆Self-drive upper carriers,precise folding for corrugated boxes

Transfer Section

◆Independent frequency conversion of separate motors.

◆Easy to adjust the upper and lower belt extensions.

◆Equipped with a high-speed electronic kick counter.

Control Panel

◆Adopt 10-inch large screen, easy and intuitive operation.

◆Multiple languages are available.

◆Memory function and remote control (optional).

Conveyor

◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box.

◆In manual mode, the belt moves at a constant speed and is not affected by the host speed.

◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed.
