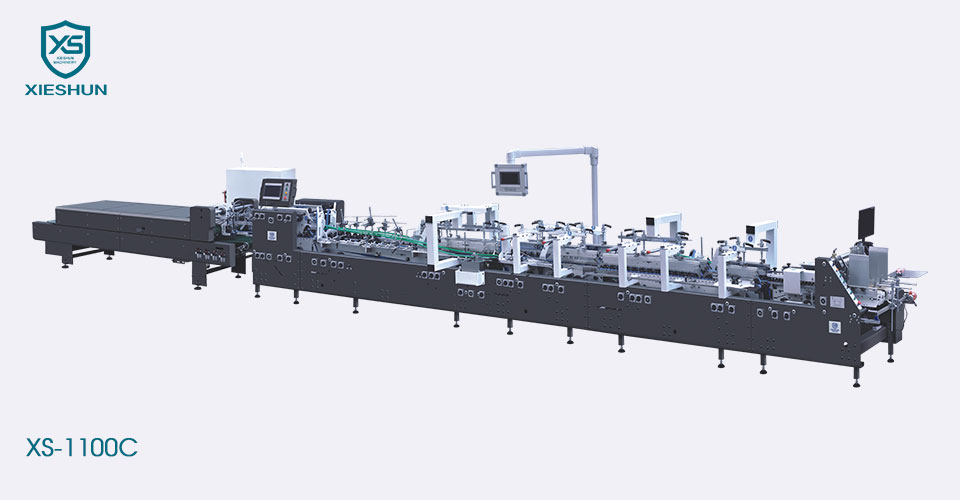

4/6 Corner Automatic High Speed Folder And Gluer Machine
Model:XS-1100C
The 4/6 Corner Automatic High Speed Folder And Gluer Machine from XIESHUN supplier is equipped with an independent servo motor drive, which can accurately transfer paper during high-speed operation to achieve higher production capacity; large micro-adjustable paper feed knife, and the side baffle is easy to adjust in width
The XIESHUN XS-1100C 4/6 Corner Automatic High Speed Folder And Gluer Machine is designed for medium-sized packaging in industries such as pharmaceuticals and cosmetics. This versatile machine efficiently handles straight line, crash lock, double wall, and both 4 and 6 corner boxes. It accommodates cardboard up to 800 gsm and can process micro-fluted boxes including N/E and F flutes, offering simplicity and ease of operation.
Model
XS-1100 C
Suitable material
200-800g/㎡cardboard and N/F&E flute corrugated board
Speed range
0-400m/min
Inching speed
30m/min
Max blank width
1100mm
Dimension(L)
15800mm
Dimension(W*H)
1850mm×1900mm
Mechanical weight
9T
Mechanical power
23kw
Compressed air
6bar
Air compressor capacity
10㎡/h
Air tank capacity
60L
Model
XS-1100 C
A
170-1100mm
B
100-900mm
E
70-540mm
A
170-1050mm
B
170-900mm
E
80-540mm
A
160-1050mm
B
160-800mm
H
25-120mm
A
330-1020mm
B
160-450mm
H
25-120mm
A
330-1020mm
B
160-800mm
H
25-120mm
Multi-Wedge Belt
PARTIAL PICTURES OF MACHINE
Feeder
◆The left and right side baffles can be lifted for easy operation.
◆The paper feeding belt of the paper feeding unit can be adjusted independently to ensure smooth and stable paper feeding.
◆Servo motor, independent speed regulation to ensure uniform paper spacing.
◆Paper feeding suction device (optional).
Alignment
◆The cardboard sent out by the paper feeding department is corrected and guided by the correction department to make the cardboard run in a straight line.
◆The upper pressure drive of the correction department can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee.
Pre-folding Section
◆The segmented left and right upper belt plates can be adjusted according to product requirements, which is fast and efficient.
◆It can efficiently complete the 180-degree pre-folding of the carton on line 1 and the 135-degree pre-folding of the 3rd line to optimize the final forming effect.
Lock Bottom
3 groups of conveyor belt structure, segmented upper belt plate function, can effectively overcome the problems in the production of special-shaped box products.
The middle upper belt plate is detachable and can be disassembled and debugged according to product requirements.
Four & Six Corner Device 4&6-corner Device
◆The electronic folding hook driven and controlled by the intelligent servo motor is installed on two independently controlled servo axes to accurately guide the folding of all the box flaps.
◆It can produce four and six corner boxes and other different types.
◆The human-machine interface is intelligently set, easy to operate, intuitive and easy to understand.
Lower Gluing Unit
◆Mechanical left and right lower glue cylinders, with separate design of glue wheel and glue cylinder, high speed without glue throwing, easy to clean and maintain.
◆The glue wheel is 5mm wide and can be replaced according to the product.
Folding Section
◆3-plate transmission belt plate structure, the middle plate can be disassembled independently, which is convenient for small box forming.
◆The left and right outer folding belt speeds can be fine-tuned independently to ensure forming accuracy.
Transfer Section
◆Separate motor with independent frequency conversion.
◆The upper and lower belt extension adjustment is simple and easy to operate.
◆Equipped with high-speed electronic kick counter.
Control Panel
◆10-inch large screen, easy and intuitive operation.
◆Multiple languages available.
◆Memory function and remote control (optional).
Conveyor
◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box.
◆In manual mode, the belt moves at a constant speed and is not affected by the host speed.
◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed.
