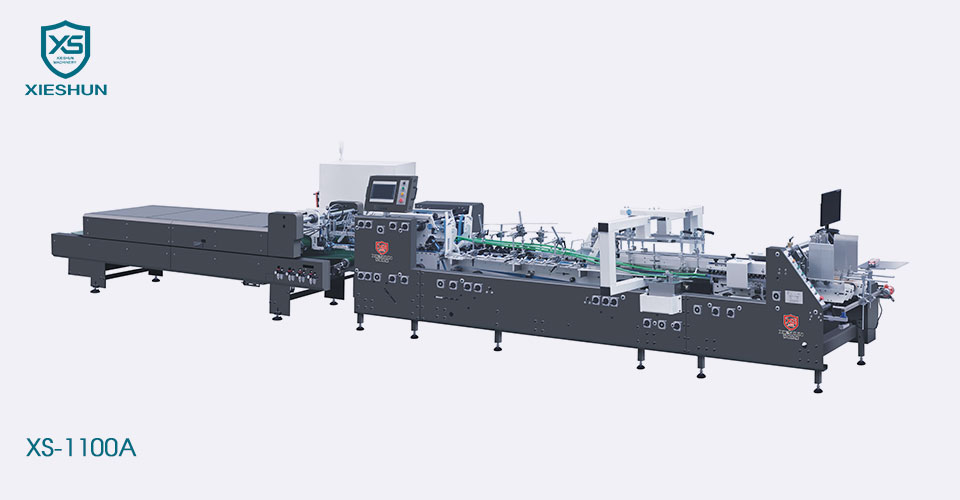

Straight Line Automatic High Speed Folder And Gluer Machine
Model:XS-1100A
XIESHUN XS-1100A high quality Straight Line Automatic High Speed Folder And Gluer Machine is a highly efficient automatic machine for the production of paper products such as paper boxes and cartons.
The XIESHUN XS-1100A Straight Line Automatic High Speed Folder And Gluer Machine operates at a maximum speed of 400m/min for straight line boxes. It features pneumatic lifting of the final folding section as an optional feature, enhancing operational flexibility and efficiency. Straight Line Automatic High Speed Folder And Gluer Machine is constructed with 8-16mm thickened steel and features components from renowned international brands, ensuring high stability and safety. It is equipped with a wireless control system for easy operation and adjustment.
Model
XS-1100A
Suitable material
200-800g/m² cardboard and N/F&E flute corrugated board
Speed range
0-400m/min
Inching speed
30m/min
Max blank width
1100mm
Dimension(L)
12000mm
Dimension(W*H)
1850x1600mm
Mechanical weight
7T
Mechanical power
18.5kw
Compressed air
6bar
Air compressor capacity
10m²/h
Air tank capacity
60L
Model
XS-1100A
Straight line box
A
170-1100mm
B
100-900mm
E
70-540mm
Multi-Wedge Belt
PARTIAL PICTURES OF MACHINE
Feeder
◆The left and right side baffles are easy to lift.
◆The paper feeding belt of the paper feeding unit can be adjusted independently to ensure smooth paper feeding.
◆Servo motor, independent speed regulation to ensure uniform paper spacing.
◆Paper feeding suction device (optional).
Alignment
◆The cardboard sent out by the paper feeding unit is corrected and guided by the alignment to make the cardboard run in a straight line.
◆The upper pressure drive of the correction unit can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee.
Lower Gluing Unit
◆Mechanical left and right lower glue cylinders, with separate design of glue wheel and Glue tank, high speed without glue throwing, easy to clean and maintain.
◆The glue wheel is 5mm wide and can be replaced according to the product.
Folding Section
◆3-plate transmission belt plate structure, the middle plate can be disassembled independently, which is convenient for small box forming.
◆The left and right outer folding belt speeds can be fine-tuned independently to ensure forming accuracy.
Transfer Section
◆Independent frequency conversion of separate motors.
◆Easy to adjust the upper and lower belt extension.
◆Equipped with a high-speed electronic kick counter.
Control Panel
◆Adopt 10-inch large screen, easy and intuitive operation.
◆Multiple languages are available.
◆Memory function and remote control (optional).
Conveyor
◆In automatic mode, the box spacing is set, and the belt speed is proportional to the host speed. When the photoelectric detects the box, the belt moves.
◆In manual mode, the belt moves at a constant speed and is not affected by the host speed.
◆The pressure part adopts pneumatic pressing, which makes the pressure control more precise and the product bonding effect more guaranteed.
