Automatic Heavy Duty Bottom Lock Box Gluing Machine
  • Automatic Heavy Duty Bottom Lock Box Gluing MachineAutomatic Heavy Duty Bottom Lock Box Gluing Machine

Automatic Heavy Duty Bottom Lock Box Gluing Machine

The Automatic Heavy Duty Bottom Lock Box Gluing Machine from XIESHUN factory is especially designed for all kinds of cardboard, corrugated packaging boxes, folder gluer with alignment function.make corrugated boxes perfectly meet the requirements of auto packaging.

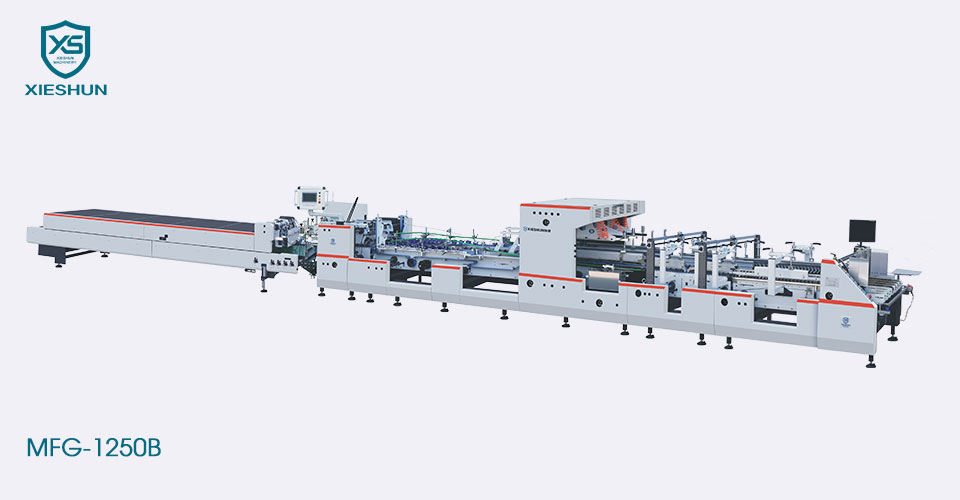

Automatic Heavy Duty Bottom Lock Folder and Gluer Machine MFG-1250B Automatic Heavy Duty Bottom Lock Box Gluing Machine, Use PLC and imported electronic components, feeder with Independent servo Motor, stable and easy to control and operate.



Model MFG-1250 B
Suitable material 200-800g/㎡cardboard and N/F&E flute corrugated board
Speed range 0-400m/min
Inching speed 30m/min
Max blank width 1250mm
Dimension(L) 1520mm
Dimension(W*H) 1800mm×1600mm
Mechanical weight 9T
Mechanical power 23kw
Compressed air 6bar
Air compressor capacity 10㎡/h
Air tank capacity 60L


Model

MFG-1250 B


z Min/mm z Max/mm
A 100mm 1250mm
B 180mm 1000mm
E 85mm 600mm
A 200mm 1050mm
B 100mm 1000mm
E 90mm 515mm
A 220mm 1000mm
B 140mm 1000mm
E 15mm 50mm



PARTIAL PICTURES OF MACHINE

Feeder

◆The left and right side baffles are easy to lift.

◆The paper feeding belt of the paper feeding unit can be adjusted independently to ensure smooth paper feeding.

◆Servo motor, independent speed regulation to ensure uniform paper spacing.

◆Paper feeding suction device (optional).

Alignment

◆The cardboard sent out by the paper feeding unit is corrected and guided by the correction unit to make the cardboard run in a straight line.

◆The upper pressure drive of the correction unit can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee.

Lock Bottom

Three groups of conveyor belt structure, segmented upper belt plate function, can effectively overcome the problems in the production of special-shaped box products.

The middle upper belt plate is detachable and can be disassembled and debugged according to product requirements.

Lower Gluing Unit

◆Mechanical left and right lower glue cylinders, with separate glue wheel and glue cylinder design, high speed without glue throwing, easy to clean and maintain.

◆The glue wheel is 5mm wide and can be replaced according to the product.

Folding Section

◆3-plate transmission belt plate structure.

◆The left and right outer folding belt speeds can be fine-tuned independently to ensure molding accuracy.

◆Self-drive upper carriers,precise folding for corrugated boxes

Transfer Section

◆Independent frequency conversion of separate motors.

◆Easy to adjust the upper and lower belt extension.

◆Equipped with high-speed electronic kick counter.

Control Panel

◆Adopt 10-inch large screen, easy and intuitive operation.

◆Multiple languages are available.

◆Memory function and remote control (optional).

Conveyor

◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box.

◆In manual mode, the belt moves at a constant speed and is not affected by the host speed.

◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed.
