Automatic Heavy Duty 4 and 6 corner Folder Gluer Machine
  • Automatic Heavy Duty 4 and 6 corner Folder Gluer MachineAutomatic Heavy Duty 4 and 6 corner Folder Gluer Machine

Automatic Heavy Duty 4 and 6 corner Folder Gluer Machine


The XIESHUN supplier amd manufacture MFG-1650C Automatic Heavy Duty 4 and 6 corner Folder Gluer Machine offers versatility, quick-change accessories, easy setup, high speed, and high production capacity.

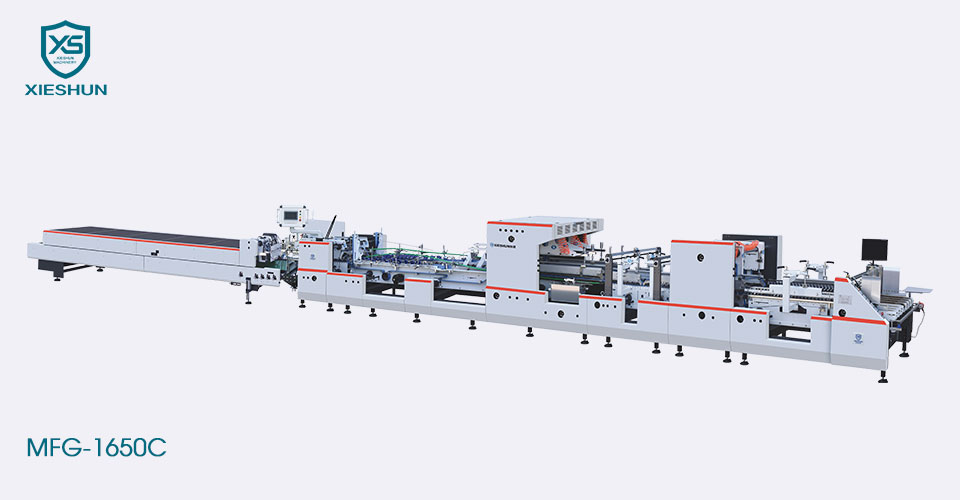

The XIESHUN MFG-1650C Automatic Heavy Duty 4 and 6 corner Folder Gluer Machine is designed for use in the medium and large box packaging industry. It features special self-drive upper carriers for precise folding of micro-flute and corrugated boxes. The folding is driven by an independent servo motor for precise speed control. The machine also includes a Secondary-Creasing optional function to align the fish tail of cartons that may be misaligned due to reasons such as improper die cutting and creasing.

Model MFG-1650 C
Suitable material 200-800g/㎡cardboard and N/F&E flute corrugated board
Speed range 0-400m/min
Inching speed 30m/min
Max blank width 1650mm
Dimension(L) 1800mm
Dimension(W*H) 2200mm×1600mm
Mechanical weight 12T
Mechanical power 29kw
Compressed air 6bar
Air compressor capacity 10㎡/h
Air tank capacity 60L


MFG-1650 C

z Min/mm z Max/mm
A 100mm 1650mm
B 180mm 1000mm
E 85mm 815mm
A 200mm 1600mm
B 100mm 1000mm
E 90mm 790mm
A 180mm 1600mm
B 140mm 1000mm
H 30mm 150mm
A 180mm 1600mm
B 140mm 1000mm
H 30mm 150mm
A 220mm 1400mm
B 140mm 1000mm
E 15mm 50mm



◆The left and right side baffles are easy to lift.

◆The paper feeding belt of the paper feeding unit can be adjusted independently to ensure smooth paper feeding.

◆Servo motor, independent speed regulation to ensure uniform paper spacing.

◆Paper feeding suction device (optional).


◆The cardboard sent out by the paper feeding unit is corrected and guided by the correction unit to make the cardboard run in a straight line.

◆The upper pressure drive of the correction unit can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee.

Pre-folding Section

◆The segmented left and right upper belt plates can be adjusted according to product requirements, which is fast and efficient.

◆It can efficiently complete the 180-degree pre-folding of the carton on line 1 and the 135-degree pre-folding of the 3rd line, optimizing the final forming effect.

◆Self-drive upper carriers,precise folding for corrugated boxes

Lock Bottom

Three groups of conveyor belt structure, segmented upper belt plate function, can effectively overcome the problems in the production of special-shaped box products.

The middle upper belt plate is detachable and can be disassembled and debugged according to product requirements.

4&6-corner Device

◆The electronic folding hook driven and controlled by the intelligent servo motor is installed on two independently controlled servo axes to accurately guide the folding of all the box flaps.

◆It can produce four-corner and six-corner boxes and other different types.

◆The human-machine interface is intelligently set, easy to operate, intuitive and easy to understand.

Lower Gluing Unit

◆Mechanical left and right lower glue cylinders, with separate glue wheel and glue cylinder design, high speed without glue throwing, easy to clean and maintain.

◆The glue wheel is 5mm wide and can be replaced according to the product.

Folding Section

◆3-plate transmission belt plate structure.

◆The left and right outer folding belt speeds can be fine-tuned independently to ensure molding accuracy.

◆Self-drive upper carriers,precise folding for corrugated boxes

Transfer Section

◆Independent frequency conversion of separate motors.

◆Easy to adjust the upper and lower belt extension.

◆Equipped with high-speed electronic kick counter.

Control Panel

◆Adopt 10-inch large screen, easy and intuitive operation.

◆Multiple languages are available.

◆Memory function and remote control (optional).


◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box.

◆In manual mode, the belt moves at a constant speed and is not affected by the host speed.

◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed.
